Safety Measures 2. Requests to Exhibitors Concerning Disaster Prevention and Safety Measures Required

  • Application No.4
  • DeadlineSeptember 27

Print this document

The Management Office is determined to operate CEATEC safely with sufficient safety measures.We hope that exhibitors can cooperate with the following requests.

Registration of Booth Manager and Booth Staff *All exhibitors must submit

  1. Contacting the booth manager
    So that the Management Office may contact you if emergency occurs, please resister the mobile phone number and e-mail address of the person in charge of thedirect/?callback_id=orderform_4&lang=en" target="_blank">"e booth with the Management Office by Friday, September 27 via the . Information that you register with us will be managed in accordance with personal information protection policy when holding this event and will be deleted after the conclusion of the exhibition.
  2. Number of booth staff
    Please register the estimated maximum number of staff (company employees, external staff, part-time workers, etc.) occupying and working at the booth for each day to the Management Office by Friday, September 27 via the "Registration of Booth Manager and Booth Staff" ＜No.4＞. The Management Office will provide this information to public organizations such as the police or fire-fighting services in the event of a disaster.

Advance Preparations

We recommend that all exhibitors refer to the below items and formulate their own safety and disaster prevention manual.
Booth disaster prevention and safety measures
  1. Formulate a disaster prevention and safety manual to be used in the management of the booth
  2. Establish an emergency contact network and select contact managers (own company, partner companies, Management Office)
  3. Divide roles among staff members
    • Ensure visitor safety and give evacuation instructions
    • Ensure the safety and confirm the whereabouts of booth staff
    • Support rescue activities
    • Maintain the booth (stop demonstrations, stop transmission of electrical energy, look after exhibit products, etc.)
  4. Prepare disaster equipment
    • Basic emergency set
    • Flashlight, etc.
  5. Check the the site
    • Confirm suspected danger spots in the booth
    • Confirm the closest primary evacuation place (open spaces such as wide aisles and resting place)
    • Confirm the closest evacuation exit and route
    • Confirm the location of fire-extinguishers

Safety Precautions when Setting Up Booths

After taking into consideration possible disaster scenarios, exhibitors are requested to take the following safety measures when designing and setting up their booth.
(1) Electrical work
  1. Booth staff will circulate information on the location of temporary distribution boards and select a person to be responsible for turning off the breaker in the event of an emergency. The temporary distribution board to be installed by the Management Office (primary mains work) will act as an earth leakage breaker that automatically cuts off the electrical supply when an earth leakage is detected.
  2. Do not conceal the temporary distribution board. Also, be sure not to place any packages etc. in front of the temporary distribution board.

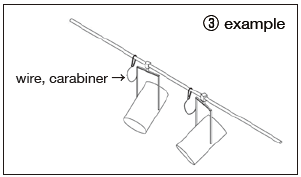

  3. When installing large-scale lighting equipment such as PAR lighting fixtures, be sure to take measures to prevent them falling such as securing them with wire.
    * For more details please refer to D-2 5
(2) Designing and setting up booths
  1. When designing block booth be sure to keep 1/3 (one-third) of the side adjacent to the aisle open to allow for an evacuation route.
  2. To prevent truss beams falling, strike four or more anchor bolts in one place when securing them to the floor.
  3. When installing exhibition panels (OCTANORM), take measures to prevent them falling by reinforcing the panels, reinforcing the beams in the corner sections, and installing weights.
  4. Take measures to prevent independent fixtures falling by securing them to the wall or floor surface.

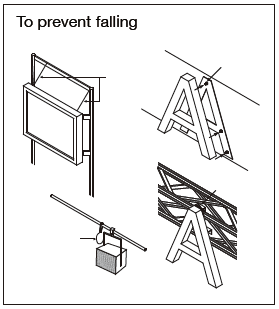

  5. When installing video monitors, speakers, channel characters, lighting fixtures, and other fixtures located in high places; take measures to prevent them falling by securing them with bolts or wires.
    * For more details please refer to D-1 3
(3) Two-story structures
  1. Design secure two-story structures that take into consideration normal time load calculations as well as seismic loads caused by major earthquakes.
  2. Please submit structural calculation sheets to the Management Office if you will be using a two-story structure. Your submitted structural calculation sheets are to be stored as reference materials only and this does not mean that the Management Office has approved or authorized the contents.
  3. In regard to second floor sections where people will pass through or remain, install walls and fences with a height of at least 1.2m to prevent people falling.
  4. Take thorough measures to prevent erections or independent fixtures installed on the second floor collapsing or falling.
    * For more details please refer to D-1 6
(4) Suspended structures
  1. Use a suspended structure that will prevent damage caused by vibrations during an earthquake.

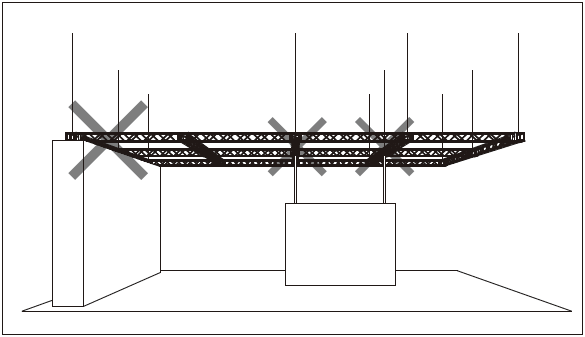

  2. Do not combine and secure suspended structures and erections that extend upwards from the ground.
  3. When wiring cables that cross the floor to suspended structures, install them with flexibility to prevent disconnection from vibrations caused by an earthquake.
    * For more details please refer to D-1 7
(5) Safety while working
  1. People working in high places must wear a helmet and a safety belt.
  2. When using a stepladder for work, be sure to secure it with an anti-opening bracket.
  3. When using a rolling tower, be sure to install a handrail and outrigger with a height of at least 900mm around the work floor.
